3.4.3 Inverse Laplace operator

The inverse Laplace operator is a useful tool in many fluid mechanics, image processing, signal filtering etc. In the CodPy framework, this operator is implemented as the pseudo-inverse of the Laplacian matrix built from a kernel.

Overview

The Laplacian operator \(\Delta_k\) is defined in CodPy via kernel methods as a matrix \(\Delta_k(X, Y) \in \mathbb{R}^{N_x \times N_x}\) constructed from a set of input points \(X\) (and optionally \(Y\)). It generalizes the classical Laplacian to the setting of RKHS.

The inverse Laplacian is simply the matrix inverse (or pseudo-inverse) of this operator:

\[ \Delta_k^{-1}(X, Y) = \left( \Delta_k(X, Y) \right)^{-1} \in \mathbb{R}^{N_x \times N_x} \]

This operator provides a way to “undo” the effect of the Laplacian on a function. It is particularly useful when solving elliptic partial differential equations.

CodPy Implementation

# Importing necessary modules
import os
import sys

from matplotlib import pyplot as plt

curr_f = os.path.join(os.getcwd(), "codpy-book", "utils")
sys.path.insert(0, curr_f)


import numpy as np

# from codpy.plotting import plot1D
# Lets import multi_plot function from codpy utils
from codpy.plot_utils import multi_plot


# Define the sinusoidal function
def periodic_fun(x):
    """
    A sinusoidal function that generates a sum of sines based on the input ``x``.
    """
    from math import pi

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        ress = np.sum(x, axis=0)
    else:
        sinss = np.prod(sinss, axis=1)
        ress = np.sum(x, axis=1)
    return ress + sinss


def nabla_my_fun(x):
    from math import pi

    import numpy as np

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        D = len(x)
        out = np.ones((D))

        def helper(d):
            out[d] += 2.0 * sinss * pi * np.sin(2 * x[d] * pi) / np.cos(2 * x[d] * pi)

        [helper(d) for d in range(0, D)]
    else:
        sinss = np.prod(sinss, axis=1)
        N = x.shape[0]
        D = x.shape[1]
        out = np.ones((N, D))

        def helper(d):
            out[:, d] += (
                2.0 * sinss * pi * np.sin(2 * x[:, d] * pi) / np.cos(2 * x[:, d] * pi)
            )

        [helper(d) for d in range(0, D)]
    return out


# Function to generate periodic data
def generate_periodic_data_cartesian(size_x, size_z, fun=None, nabla_fun=None):
    """
    Generates 2D structured Cartesian grid data for x and z domains,
    and evaluates a given function and optionally its gradient.

    Parameters:
    - size_x: number of points per axis for x (grid will be size_x^2)
    - size_z: number of points per axis for z (grid will be size_z^2)
    - fun: function to evaluate at each point
    - nabla_fun: optional gradient function to evaluate

    Returns:
    - x, z: 2D Cartesian grids of shape (N, 2)
    - fx, fz: function values at x and z
    - nabla_fx, nabla_fz (if nabla_fun is provided)
    """

    def cartesian_grid(size, box):
        lin = [np.linspace(box[0, d], box[1, d], size) for d in range(2)]
        X, Y = np.meshgrid(*lin)
        return np.stack([X.ravel(), Y.ravel()], axis=1)

    # Define domain boxes
    X_box = np.array([[-1, -1], [1, 1]])
    Z_box = np.array([[-1.5, -1.5], [1.5, 1.5]])

    # Generate Cartesian grids
    x = cartesian_grid(size_x, X_box)
    z = cartesian_grid(size_z, Z_box)

    # Function evaluations
    fx = fun(x).reshape(-1, 1) if fun else None
    fz = fun(z).reshape(-1, 1) if fun else None

    if nabla_fun:
        nabla_fx = nabla_fun(x)
        nabla_fz = nabla_fun(z)
        return x, fx, z, fz, nabla_fx, nabla_fz

    return x, fx, z, fz


# Lets define helper function to plot 3D projection of the function
def plot_trisurf(xfx, ax, legend="", elev=90, azim=-100, **kwargs):
    from matplotlib import cm

    """
    Helper function to plot a 3D surface using a trisurf plot.

    Parameters:
    - xfx: A tuple containing the x-coordinates (2D points) and their
      corresponding function values.
    - ax: The matplotlib axis object for plotting.
    - legend: The legend/title for the plot.
    - elev, azim: Elevation and azimuth angles for the 3D view.
    - kwargs: Additional keyword arguments for further customization.
    """

    xp, fxp = xfx[0], xfx[1]
    x, fx = xp, fxp

    X, Y = x[:, 0], x[:, 1]
    Z = fx.flatten()
    ax.plot_trisurf(X, Y, Z, antialiased=False, cmap=cm.jet)
    ax.view_init(azim=azim, elev=elev)
    ax.title.set_text(legend)


# import CodPy's core module and Kernel class
from codpy import core
from codpy.kernel import Kernel

Inverse Laplace operator

In the experiments below, we will compare the original function with the result of applying the inverse Laplace operator to the function and then applying the Laplace operator again. This should yield the original function back, demonstrating the operator’s effectiveness:

\[\begin{split} \\Delta_k^{-1}(\\Delta_k(f)) = f \end{split}\]

---

def fun_Delta1(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    nabla_fz = nabla_fz.reshape(-1, 2, 1)

    kernel_ptr = Kernel(
        x=x, fx=fx, set_kernel=core.kernel_setter("tensornorm", "scale_to_unitcube")
    ).get_kernel()

    temp = core.DiffOps.nabla_t_nabla_inv(
        x=x,
        y=x,
        fx=core.DiffOps.nabla_t_nabla(x=x, y=x, fx=fx, kernel_ptr=kernel_ptr),
        kernel_ptr=kernel_ptr,
        order=2,
        regularization=1e-8,
    )
    multi_plot(
        [(x, fx), (x, temp)],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),
        mp_title=[

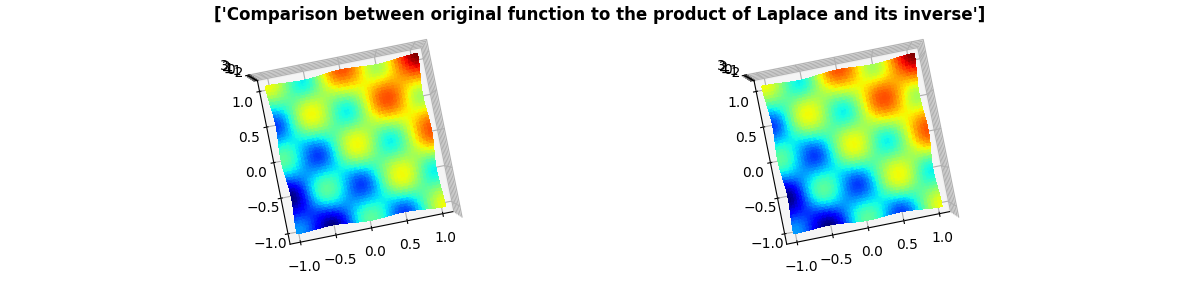

            "Comparison between original function to the product of Laplace and its inverse"
        ],
    )
    plt.show()


fun_Delta1()

Inverse Laplace operator

In the experiments below, we will compare the original function with the result of applying the inverse Laplace operator to the function and then applying the Laplace operator again. This should yield the original function back, demonstrating the operator’s effectiveness:

\[\begin{split} \\Delta_k(\\Delta_k^{-1}(f)) = f \end{split}\]

Since the Laplace operator is associative, they should be equal.

---

def fun_Delta2(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    nabla_fz = nabla_fz.reshape(-1, 2, 1)

    kernel_ptr = Kernel(
        x=x, fx=fx, set_kernel=core.kernel_setter("tensornorm", "scale_to_unitcube")
    ).get_kernel()

    temp = core.DiffOps.nabla_t_nabla_inv(
        x=x, y=x, fx=fx, kernel_ptr=kernel_ptr, order=2, regularization=1e-8
    )
    temp = core.DiffOps.nabla_t_nabla(
        x=x, y=x, fx=temp, kernel_ptr=kernel_ptr, order=2, regularization=1e-8
    )
    multi_plot(
        [(x, fx), (x, temp)],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),
        mp_title=[

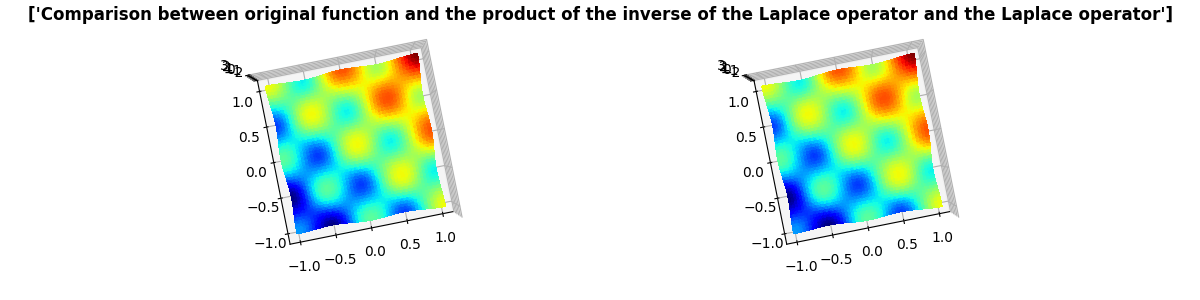

            "Comparison between original function and the product of the inverse of the Laplace operator and the Laplace operator"
        ],
    )
    plt.show()


fun_Delta2()
