3.4.6 Leray-orthogonal operator

The Leray-orthogonal operator plays a fundamental role in fluid dynamics, particularly in the mathematical formulation and numerical modeling of incompressible flows governed by the Euler or Navier–Stokes equations.

Overview

The Leray projection is used to decompose a vector field into divergence-free (incompressible) and curl-free components. In CodPy, this is achieved using kernel-based differential operators.

We define the Leray-orthogonal operator as:

\[ L_k(X, Y)^{\perp} = \nabla_k(X, Y) \cdot \Delta_k(X, Y)^{-1} \cdot \nabla_k^T(X, Y) \]

or alternatively:

\[ L_k(\cdot)^{\perp} = \nabla_k(\cdot) \cdot \nabla_k^{-1}(\cdot) \]

This operator projects any vector field onto the space orthogonal to the gradient field—i.e., the divergence-free subspace.

Action on a Vector Field

Given a vector field \(f(Z) \in \mathbb{R}^{D \times N_z \times D_f}\), the Leray-orthogonal operator acts as:

\[ L_k(Z)^{\perp} f(Z) \in \mathbb{R}^{D \times N_z \times D_f} \]

That is, it returns the projection of \(f(Z)\) onto the orthogonal complement of the gradient image in RKHS, which corresponds to the divergence-free component.

Use Case in Fluid Dynamics

This operator enables Helmholtz–Hodge decomposition of a vector field into divergence-free and gradient parts:

\[ f(Z) = f^{\perp}(Z) + \nabla_k h(Z) \]

where \(f^{\perp} = L_k^{\perp} f\) is divergence-free and \(\nabla_k h\) is the gradient component.

CodPy Implementation

To compute the Leray projection operator in CodPy:

# Importing necessary modules
import os
import sys

from matplotlib import pyplot as plt

curr_f = os.path.join(os.getcwd(), "codpy-book", "utils")
sys.path.insert(0, curr_f)


import numpy as np

# from codpy.plotting import plot1D
# Lets import multi_plot function from codpy utils
from codpy.plot_utils import multi_plot


# Define the sinusoidal function
def periodic_fun(x):
    """
    A sinusoidal function that generates a sum of sines based on the input ``x``.
    """
    from math import pi

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        ress = np.sum(x, axis=0)
    else:
        sinss = np.prod(sinss, axis=1)
        ress = np.sum(x, axis=1)
    return ress + sinss


def nabla_my_fun(x):
    from math import pi

    import numpy as np

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        D = len(x)
        out = np.ones((D))

        def helper(d):
            out[d] += 2.0 * sinss * pi * np.sin(2 * x[d] * pi) / np.cos(2 * x[d] * pi)

        [helper(d) for d in range(0, D)]
    else:
        sinss = np.prod(sinss, axis=1)
        N = x.shape[0]
        D = x.shape[1]
        out = np.ones((N, D))

        def helper(d):
            out[:, d] += (
                2.0 * sinss * pi * np.sin(2 * x[:, d] * pi) / np.cos(2 * x[:, d] * pi)
            )

        [helper(d) for d in range(0, D)]
    return out


# Function to generate periodic data
def generate_periodic_data_cartesian(size_x, size_z, fun=None, nabla_fun=None):
    """
    Generates 2D structured Cartesian grid data for x and z domains,
    and evaluates a given function and optionally its gradient.

    Parameters:
    - size_x: number of points per axis for x (grid will be size_x^2)
    - size_z: number of points per axis for z (grid will be size_z^2)
    - fun: function to evaluate at each point
    - nabla_fun: optional gradient function to evaluate

    Returns:
    - x, z: 2D Cartesian grids of shape (N, 2)
    - fx, fz: function values at x and z
    - nabla_fx, nabla_fz (if nabla_fun is provided)
    """

    def cartesian_grid(size, box):
        lin = [np.linspace(box[0, d], box[1, d], size) for d in range(2)]
        X, Y = np.meshgrid(*lin)
        return np.stack([X.ravel(), Y.ravel()], axis=1)

    # Define domain boxes
    X_box = np.array([[-1, -1], [1, 1]])
    Z_box = np.array([[-1.5, -1.5], [1.5, 1.5]])

    # Generate Cartesian grids
    x = cartesian_grid(size_x, X_box)
    z = cartesian_grid(size_z, Z_box)

    # Function evaluations
    fx = fun(x).reshape(-1, 1) if fun else None
    fz = fun(z).reshape(-1, 1) if fun else None

    if nabla_fun:
        nabla_fx = nabla_fun(x)
        nabla_fz = nabla_fun(z)
        return x, fx, z, fz, nabla_fx, nabla_fz

    return x, fx, z, fz


# Lets define helper function to plot 3D projection of the function
def plot_trisurf(xfx, ax, legend="", elev=90, azim=-100, **kwargs):
    from matplotlib import cm

    """
    Helper function to plot a 3D surface using a trisurf plot.

    Parameters:
    - xfx: A tuple containing the x-coordinates (2D points) and their
      corresponding function values.
    - ax: The matplotlib axis object for plotting.
    - legend: The legend/title for the plot.
    - elev, azim: Elevation and azimuth angles for the 3D view.
    - kwargs: Additional keyword arguments for further customization.
    """

    xp, fxp = xfx[0], xfx[1]
    x, fx = xp, fxp

    X, Y = x[:, 0], x[:, 1]
    Z = fx.flatten()
    ax.plot_trisurf(X, Y, Z, antialiased=False, cmap=cm.jet)
    ax.view_init(azim=azim, elev=elev)
    ax.title.set_text(legend)


# import CodPy's core module and Kernel class
from codpy import core
from codpy.kernel import Kernel

Leray operator and Helmholtz-Hodge decomposition

---

def fun_LerayT(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    nabla_fz = nabla_fz.reshape(-1, 2, 1)

    kernel_ptr = Kernel(
        x=x, fx=fx,
    ).get_kernel()
    LerayT_fz = core.DiffOps.nabla(
        x=x,
        y=x,
        z=z,
        fx=core.DiffOps.nabla_inv(x=x, y=x, z=x, fz=nabla_fz, kernel_ptr=kernel_ptr),
        kernel_ptr=kernel_ptr,
        order=2,
        regularization=1e-8,
    )
    multi_plot(
        [
            (z, nabla_fz[:, 0, :]),
            (z, LerayT_fz[:, 0, :]),
            (z, nabla_fz[:, 1, :]),
            (z, LerayT_fz[:, 1, :]),
        ],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),
        mp_title=[

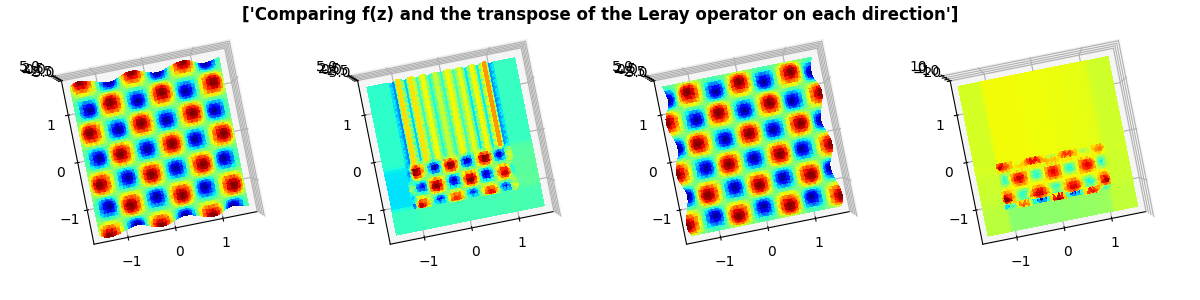

            "Comparing f(z) and the transpose of the Leray operator on each direction"
        ],
    )
    plt.show()


fun_LerayT()


def fun_LerayT_nabla_nablainv(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    kernel_ptr = Kernel(
        x=x, fx=fx, set_kernel=core.kernel_setter("tensornorm", "scale_to_unitcube")
    ).get_kernel()
    nabla_fx = core.DiffOps.nabla(
        x=x,
        y=x,
        z=z,
        fx=fx,
        kernel_ptr=kernel_ptr,
        order=2,
        regularization=1e-8,
    )
    nabla_fz = core.DiffOps.leray_t(x=x, y=x, fx=nabla_fx, kernel_ptr=kernel_ptr)

    LerayT_fz = core.DiffOps.nabla(
        x=x,
        y=x,
        z=z,
        fx=core.DiffOps.nabla_inv(x=x, y=x, z=z, fz=nabla_fz, kernel_ptr=kernel_ptr),
        kernel_ptr=kernel_ptr,
        order=2,
        regularization=1e-8,
    )
    multi_plot(
        [
            (z, nabla_fz[:, 0, :]),
            (z, LerayT_fz[:, 0, :]),
            (z, nabla_fz[:, 1, :]),
            (z, LerayT_fz[:, 1, :]),
        ],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),
        mp_title=[

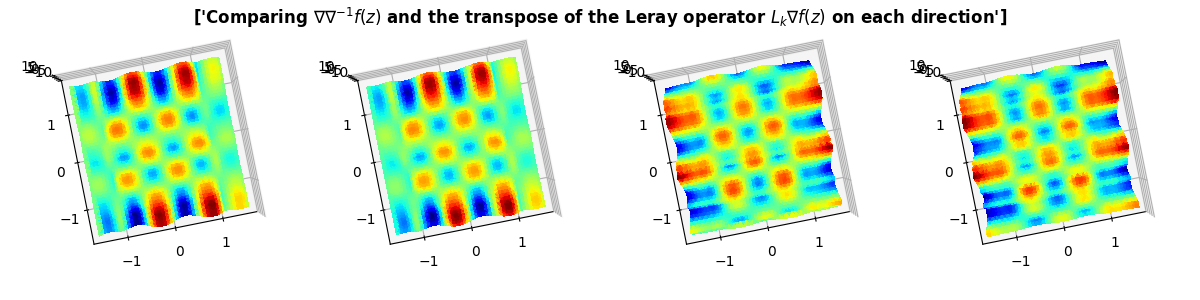

            "Comparing $\nabla \nabla^{-1}f(z)$ and the transpose of the Leray operator $L_k \nabla f(z)$ on each direction"
        ],
    )
    plt.show()


fun_LerayT_nabla_nablainv()

•
•
