3.4.7 Leray operator and Helmholtz-Hodge decomposition

This section describes the Leray operator and its role in the Helmholtz–Hodge decomposition, which is foundational in the analysis of incompressible fluid flows, turbulence, and vector field analysis.

Overview

The Helmholtz–Hodge decomposition expresses any vector field as the orthogonal sum of a gradient component and a divergence-free component:

\[ v = \nabla h + \zeta, \quad \nabla \cdot \zeta = 0, \quad h = \Delta^{-1} \nabla \cdot v \]

In the context of kernel methods, CodPy provides a numerical approximation of this decomposition via the Leray operator.

Leray Operator Definition

The Leray operator is defined by subtracting the Leray-orthogonal projection from the identity:

\[ L_k(\cdot) = I_d - L_k(\cdot)^{\perp} = I_d - \nabla_k(\cdot) \cdot \Delta_k(\cdot)^{-1} \cdot \nabla_k(\cdot)^T \]

This operator projects any field onto the divergence-free subspace. For any vector field \(v_z \in \mathbb{R}^{D \times N_z \times D_v}\), we obtain the orthogonal decomposition:

\[ v_z = L_k(Z) v_z + L_k(Z)^{\perp} v_z \]

with the orthogonality condition:

\[ \left< L_k v_z, L_k^{\perp} v_z \right>_{D, N_z, D_v} = 0 \]

Numerical Helmholtz–Hodge Decomposition

Using the Leray operator, we can numerically approximate the decomposition:

\[ v_z = \nabla_k(Z) h_x + \zeta_z \]

where: - \(h_x = \nabla_k^{-1}(Z) v_z\) is the scalar potential, - \(\zeta_z = L_k(Z) v_z\) is the divergence-free component.

This decomposition satisfies the orthogonality relations:

\[ \nabla_k(Z)^T \zeta_z = 0, \quad \left< \zeta_z, \nabla_k h_x \right>_{D, N_z, D_f} = 0 \]

These conditions mirror the classical Hodge decomposition and provide a powerful framework for the simulation and analysis of fluid flows.

CodPy Implementation

# Importing necessary modules
import os
import sys

from matplotlib import pyplot as plt

curr_f = os.path.join(os.getcwd(), "codpy-book", "utils")
sys.path.insert(0, curr_f)


import numpy as np

# from codpy.plotting import plot1D
# Lets import multi_plot function from codpy utils
from codpy.plot_utils import multi_plot


# Define the sinusoidal function
def periodic_fun(x):
    """
    A sinusoidal function that generates a sum of sines based on the input ``x``.
    """
    from math import pi

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        ress = np.sum(x, axis=0)
    else:
        sinss = np.prod(sinss, axis=1)
        ress = np.sum(x, axis=1)
    return ress + sinss


def nabla_my_fun(x):
    from math import pi

    import numpy as np

    sinss = np.cos(2 * x * pi)
    if x.ndim == 1:
        sinss = np.prod(sinss, axis=0)
        D = len(x)
        out = np.ones((D))

        def helper(d):
            out[d] += 2.0 * sinss * pi * np.sin(2 * x[d] * pi) / np.cos(2 * x[d] * pi)

        [helper(d) for d in range(0, D)]
    else:
        sinss = np.prod(sinss, axis=1)
        N = x.shape[0]
        D = x.shape[1]
        out = np.ones((N, D))

        def helper(d):
            out[:, d] += (
                2.0 * sinss * pi * np.sin(2 * x[:, d] * pi) / np.cos(2 * x[:, d] * pi)
            )

        [helper(d) for d in range(0, D)]
    return out


# Function to generate periodic data
def generate_periodic_data_cartesian(size_x, size_z, fun=None, nabla_fun=None):
    """
    Generates 2D structured Cartesian grid data for x and z domains,
    and evaluates a given function and optionally its gradient.

    Parameters:
    - size_x: number of points per axis for x (grid will be size_x^2)
    - size_z: number of points per axis for z (grid will be size_z^2)
    - fun: function to evaluate at each point
    - nabla_fun: optional gradient function to evaluate

    Returns:
    - x, z: 2D Cartesian grids of shape (N, 2)
    - fx, fz: function values at x and z
    - nabla_fx, nabla_fz (if nabla_fun is provided)
    """

    def cartesian_grid(size, box):
        lin = [np.linspace(box[0, d], box[1, d], size) for d in range(2)]
        X, Y = np.meshgrid(*lin)
        return np.stack([X.ravel(), Y.ravel()], axis=1)

    # Define domain boxes
    X_box = np.array([[-1, -1], [1, 1]])
    Z_box = np.array([[-1.5, -1.5], [1.5, 1.5]])

    # Generate Cartesian grids
    x = cartesian_grid(size_x, X_box)
    z = cartesian_grid(size_z, Z_box)

    # Function evaluations
    fx = fun(x).reshape(-1, 1) if fun else None
    fz = fun(z).reshape(-1, 1) if fun else None

    if nabla_fun:
        nabla_fx = nabla_fun(x)
        nabla_fz = nabla_fun(z)
        return x, fx, z, fz, nabla_fx, nabla_fz

    return x, fx, z, fz


# Lets define helper function to plot 3D projection of the function
def plot_trisurf(xfx, ax, legend="", elev=90, azim=-100, **kwargs):
    from matplotlib import cm

    """
    Helper function to plot a 3D surface using a trisurf plot.

    Parameters:
    - xfx: A tuple containing the x-coordinates (2D points) and their
      corresponding function values.
    - ax: The matplotlib axis object for plotting.
    - legend: The legend/title for the plot.
    - elev, azim: Elevation and azimuth angles for the 3D view.
    - kwargs: Additional keyword arguments for further customization.
    """

    xp, fxp = xfx[0], xfx[1]
    x, fx = xp, fxp

    X, Y = x[:, 0], x[:, 1]
    Z = fx.flatten()
    ax.plot_trisurf(X, Y, Z, antialiased=False, cmap=cm.jet)
    ax.view_init(azim=azim, elev=elev)
    ax.title.set_text(legend)


# import CodPy's core module and Kernel class
from codpy import core
from codpy.kernel import Kernel

Leray operator and Helmholtz-Hodge decomposition

---

def fun_Leray(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    nabla_fz = nabla_fz.reshape(-1, 2, 1)

    kernel_ptr = Kernel(
        x=x, fx=fx, set_kernel=core.kernel_setter("tensornorm", "scale_to_unitcube", polynomial_order=0, regularization=1e-8 )
    ).get_kernel()

    nabla_inv_fx = core.DiffOps.nabla_inv(
        x=x, y=x, z=z, fz=nabla_fz, kernel_ptr=kernel_ptr, order=0, regularization=1e-8
    )
    nabla_f_x = core.DiffOps.nabla(
        x=x,
        z=z,
        fx=nabla_inv_fx,
        kernel_ptr=kernel_ptr,
        order=0,
        regularization=1e-8,
    )
    Leray_fz = nabla_f_x
    multi_plot(
        [
            (z, nabla_fz[:, 0, :]),
            (z, Leray_fz[:, 0, :]),
            (z, nabla_fz[:, 1, :]),
            (z, Leray_fz[:, 1, :]),
        ],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),

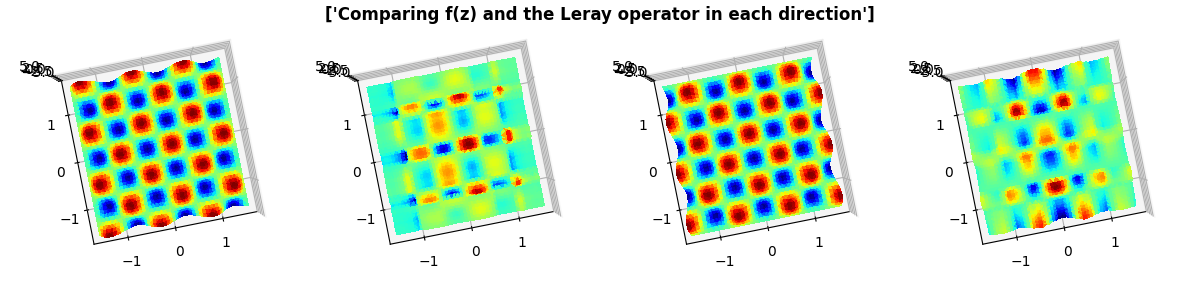

        mp_title=["Comparing f(z) and the Leray operator in each direction"],
    )
    plt.show()

# core.KerInterface.set_verbose()

fun_Leray()


def fun_Leray2(size_x=50, size_y=50):
    x, fx, z, fz, _, nabla_fz = generate_periodic_data_cartesian(
        size_x, size_y, periodic_fun, nabla_fun=nabla_my_fun
    )

    nabla_fz = nabla_fz.reshape(-1, 2, 1)

    kernel_ptr = Kernel(
        x=x, fx=fx, set_kernel=core.kernel_setter("tensornorm", "scale_to_unitcube", polynomial_order=0, regularization=1e-8 )
    ).get_kernel()

    nabla_inv_fx = core.DiffOps.nabla_inv(
        x=x, y=x, z=z, fz=nabla_fz, kernel_ptr=kernel_ptr, order=2, regularization=1e-8
    )
    nabla_f_x = core.DiffOps.nabla(
        x=x,
        z=z,
        fx=nabla_inv_fx,
        kernel_ptr=kernel_ptr,
        order=2,
        regularization=1e-8,
    )
    Leray_fz = nabla_fz - nabla_f_x

    Leray_fz2 = core.DiffOps.leray(x=x, y=x, fx=nabla_f_x, kernel_ptr=kernel_ptr)
    multi_plot(
        [
            (z, Leray_fz2[:, 0, :]),
            (z, Leray_fz[:, 0, :]),
            (z, Leray_fz2[:, 1, :]),
            (z, Leray_fz[:, 1, :]),
        ],
        plot_trisurf,
        projection="3d",
        mp_nrows=1,
        mp_figsize=(12, 3),

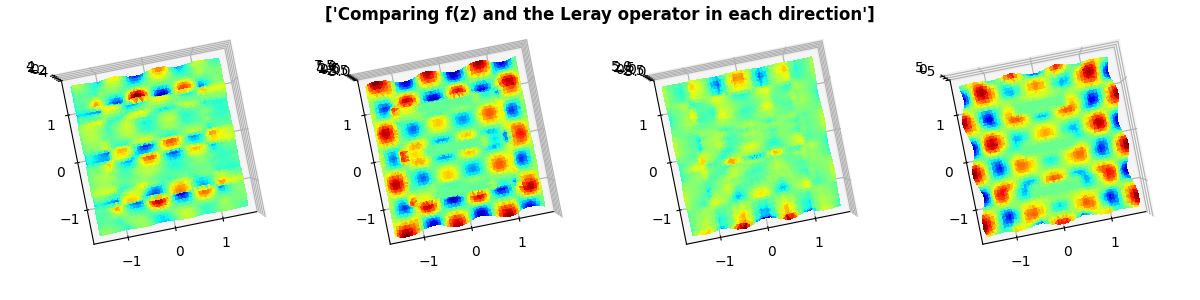

        mp_title=["Comparing f(z) and the Leray operator in each direction"],
    )
    plt.show()


fun_Leray2()

•
•
